338,80 €
VAT included
Shipping outside the EU: 280,00 €, without VAT. Import duties are paid on arrival.
Currently unavailable
Business in another EU country? Enter your VAT number at checkout and we invoice without VAT.
| Stroke | 4.2 mm |
|---|---|
| Weight | 85 g |
| Motor | Maxon 12 V |
| Voltage | 2–12 V |
| Connection | RCA |

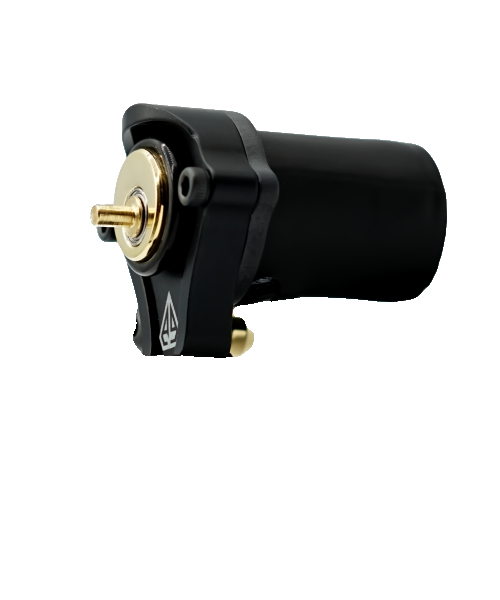

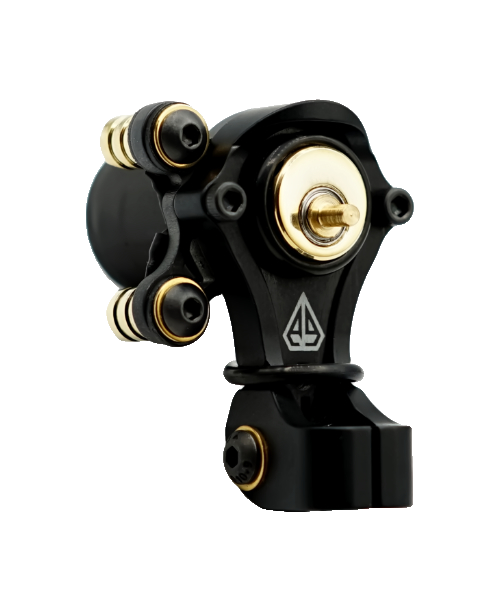

The Imperial D1 is a rotary machine, designed to drive standard needles, in convination with Imperial grip S It is high-power machine with high torque from low revolutions. It is designed for heavy work - such as packing colors and thick lines - providing high quality and consistency. It has a 12V Maxon motor that reaches up to 6000 RPM. Specialized for professional use, it supports high quantities of needles in various configurations, such as RL, RS or M1, MC. It has a stroke of 3.5mm and a great balance to feel comfortable with minimal vibration for longer working hours.
Features:
• Constant torque 12.1 mNm/A
• Rated torque (maximum continuous torque) 6.95 mNm
• Nominal speed 6000 rpm
• No load speed 9170 rpm
• Rotor inertia 4.19 gcm²
• Stroke of 3.5mm
• Clip cord connection
• Rated voltage 2 to 12 V
• Weight of 85 grams
• Dotwork
• Traditional
• Neotraditional
• Blackwork
• Linework
• Japanese
